Right Angle Solenoid Pulse Valve Nut Connection Easy Installation Smooth Airflow

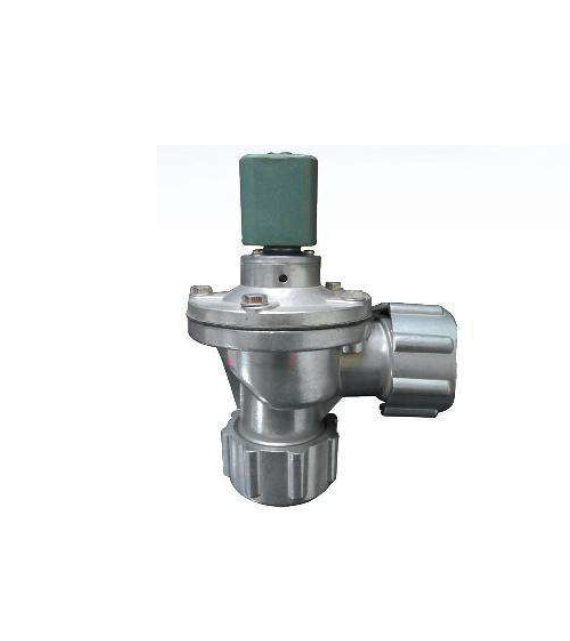

The DMF-ZM right-angle solenoid pulse valve is a direct-connect cleaning valve engineered for pulse-jet industrial dust collectors. Sharing the same 90-degree architecture as the proven DMF-Z series, this valve adds a critical installation feature: both the inlet and outlet ports are equipped with integral fastening nuts. This design eliminates the need for separate wrenches, adapters, or threaded fittings, allowing the valve to be directly bolted onto the compressed air manifold and blowpipe with minimal tools and labor. The result is a faster, more secure installation that saves time during initial setup and simplifies field replacements. Inside, the valve operates identically to standard right-angle models — a solenoid-driven pilot vents a diaphragm chamber, causing the main diaphragm to snap open in milliseconds. A powerful, full-pressure compressed air pulse rushes directly through the 90-degree body and into the blowpipe, effectively removing dust cakes from filter bags. Built from die-cast aluminum with an IP65 sealed coil, the DMF-ZM withstands dusty, humid, and high-temperature industrial environments typical of Southeast Asia and the Middle East. Available in 20 mm, 25 mm, and 40 mm nominal diameters in both single and dual-diaphragm versions, it provides reliable, low-maintenance pulse cleaning for any baghouse system where ease of installation and serviceability are top priorities.

In many factories, replacing or installing a pulse valve requires threading pipe connections, applying sealant, and using multiple wrenches in tight, overhead spaces. Every minute of extra labor spent wrestling with fittings increases maintenance downtime and raises the total cost of ownership. Valves that are difficult to align or tighten also risk being under-torqued, leading to compressed air leaks that waste energy and reduce cleaning pressure. Furthermore, valves installed without proper thread engagement can vibrate loose over time, causing intermittent cleaning failures and accelerated filter bag wear. Maintenance teams need a pulse valve that installs quickly, securely, and repeatably, without specialized tools or complicated procedures.

The DMF-ZM solves these installation challenges through its integrated fastening nuts on both the inlet and outlet ports. Instead of threading the valve body onto the manifold and blowpipe separately and then locking it in place, the installer simply positions the valve between the two connection points and tightens the captive nuts. This secures the valve firmly in place with even torque, creating a reliable seal without thread sealant or excessive force. The 90-degree body acts as the elbow between the horizontal manifold and the vertical or angled blowpipe, eliminating extra fittings. Once installed, the valve delivers the same high-speed, high-energy cleaning pulse as any premium right-angle valve. A dual-diaphragm option provides sharper opening and greater air volume for longer blowpipes. The die-cast aluminum body and sealed coil ensure long-term reliability, while the nut-connected design means that future maintenance swaps take minutes instead of hours.

*All models: right-angle (90°) body with integrated fastening nuts on both inlet and outlet; die-cast aluminum alloy body; NBR diaphragm (standard) or Viton (optional for high temperature); IP65 solenoid coil; operating pressure 0.3–0.8 MPa; ambient temperature range -20°C to +80°C. Custom coil voltages (24V DC, 110V AC, 220V AC) available.*

• Pulse-jet baghouse dust collectors in cement, steel, and mineral processing plants.
• Cartridge dust collectors for welding fume, grinding, and cutting operations.
• Silo venting and bulk material handling filter units.
• Biomass and coal-fired boiler flue gas dedusting.
• Food processing, grain handling, and feed mill dust control.
• Any perpendicular manifold-to-blowpipe connection where fast, simple installation and field replacement are required.

1. Standby: The compressed air manifold is pressurized. The diaphragm seals the main valve port, holding back the air charge.
2. Pulse signal: The dust collector's sequential timer sends a brief electrical signal (typically 100–150 ms) to the solenoid coil.
3. Pilot vent: The energized coil lifts the pilot armature, instantly venting the diaphragm's back chamber. The pressure imbalance snaps the main diaphragm fully open.
4. Pulse discharge: Compressed air rushes directly from the manifold, through the 90-degree valve body, and into the connected blowpipe. A high-energy pressure wave flexes the filter bags and dislodges the dust cake.
5. Positive closure: The electrical pulse ends, the pilot port closes, and manifold pressure re-enters the diaphragm's back chamber, forcing it tightly against the valve seat. The air pulse stops immediately, with zero leakage.

Step 1: Determine required valve size. Match the nominal diameter (20, 25, or 40 mm) to your blowpipe diameter and the number of filter bags served. The DMF-ZM-40S covers most industrial blowpipe requirements.

Step 2: Choose single or dual diaphragm. The 20 and 25 mm models use a single diaphragm for standard cleaning cycles. The 40S model uses a dual diaphragm for faster opening and higher air volume, ideal for longer blowpipes or high-frequency cleaning.

Step 3: Verify operating conditions. Confirm compressed air supply pressure (0.3–0.8 MPa). The nut-secured design ensures reliable sealing at all rated pressures.

Step 4: Select coil voltage and diaphragm material. Standard coil voltage is 24V DC or 220V AC. Choose Viton diaphragms for ambient temperatures above 80°C or exposure to chemicals.

*Contact our engineers with your baghouse specifications for a free sizing recommendation and quotation within 24 hours.*

1. How does the nut connection improve installation compared to standard threaded valves?

The integrated fastening nuts allow the valve to be positioned and tightened directly onto the manifold and blowpipe without separate wrenches on both sides. This cuts installation time significantly and ensures even, reliable torque without thread sealant.

2. Is the DMF-ZM performance identical to the DMF-Z series?

Yes. The internal flow path, diaphragm mechanism, and solenoid operation are identical. The difference is purely in the external connection method, which adds convenience without sacrificing airflow or cleaning power.

3. Can I use this valve outdoors in tropical or desert environments?

Yes. The die-cast aluminum body is corrosion-resistant, and the solenoid coil is sealed to IP65 standards, protecting against dust, heavy rain, and high humidity. Operating temperature range is -20°C to +80°C.

4. When should I choose the dual-diaphragm 40S model?

Choose the 40S for blowpipes serving 8 or more filter bags, or when the cleaning cycle exceeds 10 pulses per minute. The dual diaphragm provides a sharper, higher-volume pulse for demanding applications.

5. Can I replace the diaphragm or coil without removing the nut-secured valve body?

Yes. Both the coil and diaphragm can be accessed from the top of the valve by removing the cover. The main valve body remains bolted in place, meaning no system re-piping is required during maintenance.

6. How do I get a quotation and delivery details?

Provide the model, quantity, coil voltage, and nearest seaport. We will return a complete offer with freight cost and lead time within one business day. Distributor and volume pricing are available.
