Wet Grinding Dust Collector High Efficiency Stainless Steel Low Maintenance

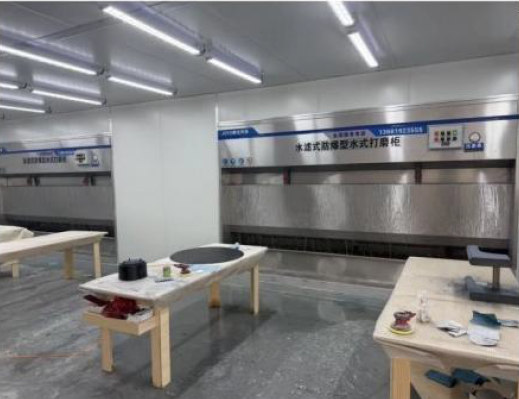

The JS-SL series water wash sanding cabinet is a wet dust collection system purpose-built for grinding, polishing, and sanding operations across stone, metal, wood, and composite industries. Unlike conventional baghouse or cartridge collectors that clog with mixed dust, this unit uses a triple-stage water filtration process — water curtain, water-wash ball filter layer, and spray mist — to capture over 90% of airborne dust while simultaneously removing water-soluble gases and vapors. The entire housing, water tank, and internal baffles are constructed from 201 stainless steel, providing permanent corrosion resistance and easy cleaning in the hot, humid environments of Southeast Asia and the Middle East. A modular bolted design with foam gasket seals eliminates dust leakage and thermal distortion. Five standard models handle airflows from 13,000 to 52,000 m³/h, with the flexibility to add a workbench surface for integrated sanding stations. Simple operation requires only fan start/stop and periodic water top-up; the reusable filter balls and spray nozzles are cleaned with a quick hose-down. For workshops processing marble, granite, ceramic, metal parts, and wood products, this cabinet delivers constant airflow, zero filter replacement costs, and safe capture of combustible and high-temperature dusts that would destroy dry filters.

Sanding and grinding generate a deadly mix of heavy chips, fine respirable dust, and often hot sparks. Baghouse filters quickly tear, clog, or ignite. Cartridge filters blind within hours when processing moist or fibrous material. In tropical humidity, dry filters absorb moisture, cake solid, and breed bacteria. The result is frequent filter replacement, escalating operating cost, and dangerous dust accumulation in the workshop. Facilities need a dust collector that handles abrasive particles, moisture, and sparks without consumable filters.

The JS-SL solves these problems permanently. The water curtain provides immediate, non-clogging capture of large particles and sparks. Fine dust that passes through enters a bed of multi-faceted hollow filter balls with exceptionally high surface area, where air and water mix turbulently. A final spray mist section completes the capture process. An integrated demister layer removes water droplets before clean air discharge. No filter bags, no cartridges, no clogging. The stainless steel body withstands abrasive dust, water, and mild chemicals indefinitely. The bolted modular construction allows quick assembly and disassembly for relocation. Reusable filter balls are flushed clean with a pressure washer, eliminating consumable costs entirely. The result is a fit-and-forget dust control solution with the lowest total ownership cost in its class.

*All models: 201 stainless steel body (1.2 mm), water curtain + filter balls + spray mist filtration, plastic demister, DN20 water inlet, DN63 drain, DN50 overflow, efficiency ≥90%, noise ≤75 dB, resistance ≤600 Pa. Optional workbench and automatic water replenishment available.*

• Stone and marble: cutting, grinding, and polishing.
• Ceramic and tile: edge grinding, surface finishing.
• Metalworking: deburring, weld grinding, aluminum and steel sanding.
• Woodworking: furniture sanding, cabinet finishing.
• Cement and concrete products: surface smoothing, sample preparation.
• Composite and fiberglass: trimming and finishing.
• Any process generating mixed dust, sparks, or requiring high-temperature compatibility.

1. The axial fan pulls dust-laden air into the cabinet through the front intake grille.
2. A circulating pump continuously flows water over the water curtain plate, trapping large particles and sparks instantly.
3. Air passes through a bed of multi-faceted hollow filter balls. The high surface area and turbulent mixing capture fine dust.
4. A spray mist section provides final particulate capture. Dust becomes sludge and drops into the water tank.
5. A demister layer removes water droplets. Clean, moist air is exhausted by the fan.
6. Sludge settles in the tank. Filter balls are flushed periodically with a hose. Water is topped up as needed.

1. Calculate required airflow based on the open face area of the cabinet. Target a face velocity of 1.0–1.5 m/s. For a 3-meter wide cabinet with 0.85 m height, airflow requirement is approximately 9,000–14,000 m³/h.
2. Match the cabinet length to your workspace. A single operator typically uses a 1.5–2.0 m width. Larger parts or multiple operators require 3.0–5.0 m.
3. Confirm power supply. Standard is single-phase or three-phase as per motor configuration. Ensure water supply and drainage are available.
4. For integrated grinding workstations, add the optional workbench surface. For automatic water level control, add the auto-fill kit.

*Contact our engineers with your part dimensions and daily operating hours for a free sizing within 24 hours.*
