Pulse Jet Baghouse Dust Collector High Efficiency Low Emission Long Life

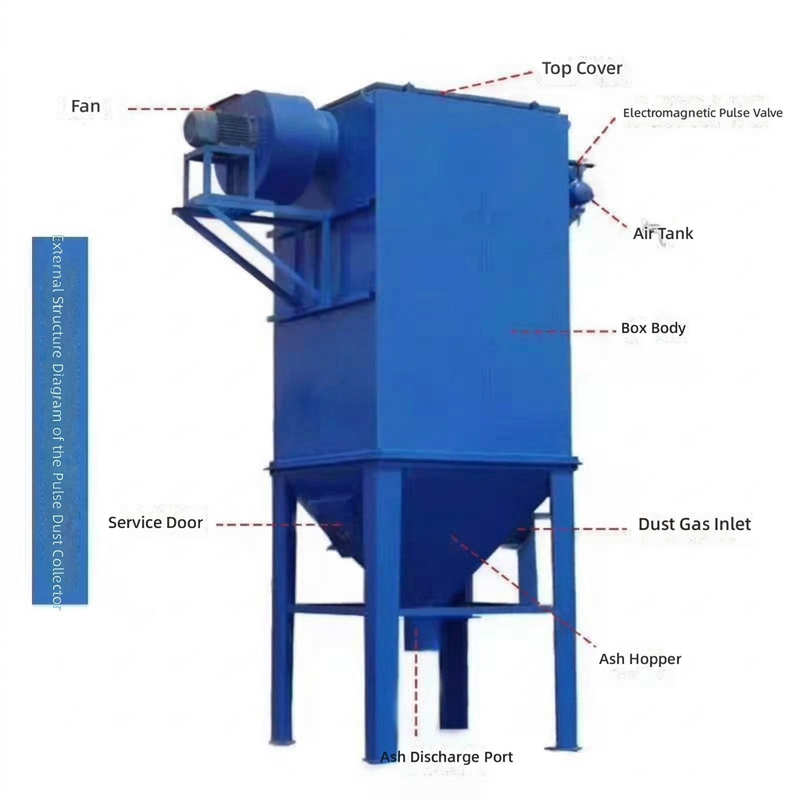

The DMC pulse jet baghouse dust collector is a compact, high-efficiency dry filtration system designed for localized dust collection at individual production points. It integrates a centrifugal fan, filter bags, pulse-jet cleaning mechanism, and programmable controller into a single unit — simply connect power and ductwork to begin operation. Unlike continuous-pulse collectors that allow re-entrainment of dislodged dust, the DMC employs a chamber-isolation cleaning method: the chamber is briefly taken offline while a compressed-air pulse thoroughly cleans the filter bags in a still-air environment. This eliminates cross-contamination between bags, achieves a deeper clean, and extends both filter and valve life. The filter bags are secured with elastic snap-band collars for a reliable seal, and the cage uses a polygonal profile that reduces fabric abrasion while simplifying removal. Dust-laden air enters the hopper, where coarse particles drop out by gravity; fine dust is captured on the outer bag surface while clean air passes through to the discharge plenum. With a leakage rate minimized by kerosene-tested gasketed doors, the DMC delivers reliable, low-cost dust control for metallurgy, building materials, cement, chemicals, and general manufacturing.

Conventional pulse-jet collectors fire compressed air into operating chambers where airflow continues during cleaning. The upward gas velocity re-entrains a significant portion of the dislodged dust back onto adjacent bags, reducing cleaning effectiveness. This forces more frequent pulsing, consuming excessive compressed air, fatiguing filter fabric and valve diaphragms, and shortening maintenance intervals.

The DMC divides the collector into individual chambers. During a cleaning cycle, the chamber's clean-air outlet is closed, stopping all airflow through that set of bags. A compressed-air pulse then fires into the stationary bags, and the dislodged dust settles freely into the hopper without upward gas velocity to recirculate it. A single pulse achieves thorough cleaning, extending the cycle interval, reducing compressed air consumption, and doubling filter bag and diaphragm life. Maintenance is performed chamber-by-chamber without shutting down the entire system.

DMC units are configured per application. Key specifications include:

Configuration:

Chamber-isolation, offline pulse-jet cleaning

Filter Media:

Needle felt (polyester, PPS, Nomex, or fiberglass per temperature/chemistry)

Bag Collar:

Elastic snap-band for airtight tube-sheet seal

Cage Design:

Polygonal profile to reduce fabric wear

Cleaning Control:

Programmable PLC with differential pressure triggering

Body:

Gasketed, kerosene-tested airtight construction

Dust Discharge:

Gravity hopper with rotary airlock valve

Bag Access:

Top removal — bags drop into the hopper and are retrieved via access door

• Metallurgy, foundries, and metalworking.
• Cement, lime, and building material plants.
• Chemical, and food powder processing.
• Grain handling, feed mills, and woodworking.
• Any application with individual dust sources requiring compact, efficient point collection.

Dust-laden air is drawn by the integral fan into the hopper, where heavy particles drop out. Fine dust rises into the filter chamber and is captured on the outer surface of the filter bags. Clean air passes through the bag interior to the discharge plenum and is exhausted. During a cleaning cycle, the chamber's outlet damper closes, stopping airflow. A compressed-air pulse is fired down through the bags, flexing the fabric and dislodging the dust cake into the hopper in a still-air environment. The outlet damper reopens after dust has settled, and the chamber returns to filtration.

Step 1: Determine the required airflow (m³/h) based on the capture hood design and dust source characteristics.

Step 2: Select filter media based on gas temperature and chemistry. Polyester for ambient to 130°C; Nomex to 200°C; PPS for acid gases; fiberglass for high temperatures.

Step 3: Determine the number of chambers based on the required filter area and the need for continuous operation during bag maintenance.

Step 4: Verify the electrical supply and control requirements.

Contact our engineers with your dust source details and airflow for a free configuration within 24 hours.

1. How does the chamber-isolation cleaning improve performance?

By stopping airflow during pulsing, dislodged dust settles into the hopper without being re-entrained onto neighboring bags. One pulse achieves a thorough clean, reducing compressed air use and doubling bag and valve life.

2. Can filter bags be replaced without stopping the entire system?

Yes. Each chamber can be isolated and its bags replaced while the remaining chambers continue normal filtration and the system fan remains running.

3. How does the polygonal cage profile extend bag life?

The polygonal shape reduces the contact area between the bag fabric and the cage, minimizing friction wear during the repeated inflation and deflation of pulse cleaning cycles.

4. How are bags removed and replaced?

Bags are removed from the top clean-air plenum. The cage is pulled out, and the dirty bag is detached and dropped into the hopper, where it is retrieved through the access door — no need to handle dirty bags at the top of the collector.

5. How is the airtight construction verified?

All gasketed doors and panel joints are factory-tested using kerosene leak detection to ensure a near-zero leakage rate before shipment.

6. How do I get a quotation?

Provide the dust source description, required airflow, gas temperature, and nearest seaport. We return a complete quotation with lead time within one business day. Distributor pricing is available.
