Mobile Pulse Jet Cartridge Dust Collector High Efficiency Portable Compact

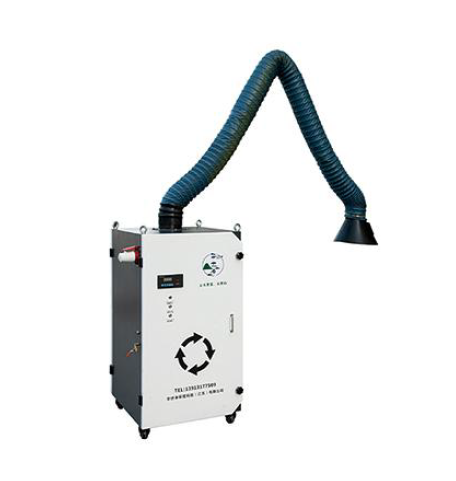

The HYYT-3KY mobile pulse jet cartridge dust collector is a compact, high-efficiency unit built for localized fume, smoke, and dust extraction in dynamic workshops. It combines a PTFE membrane cartridge filter, automatic pulse-jet cleaning, and a 2.2 kW fan into a single portable cabinet on lockable casters. Simply wheel it to any welding station, grinding bench, or cutting area, connect a flexible extraction arm, and switch it on. The unit captures airborne contaminants at source, delivers ≥95% filtration efficiency down to 0.3 microns, and safely recirculates clean air back into the workspace. This design eliminates complex ductwork, saves air-conditioned cool air in hot climates, and ensures compliance with occupational health and environmental standards. With a tiny footprint of 720*665 mm and tool-free dust bin removal, it is the ideal entry-level solution for small and medium metal fabrication, maintenance, and repair operations across Southeast Asia, the Middle East, and beyond.

In metalworking job shops, repair bays, and fabrication facilities, dust and fume sources move constantly. Welding, grinding, and cutting operations happen at different locations each day. Fixed ducted extraction systems are often impractical for such environments — they are expensive, require permanent structural modifications, and cannot be relocated easily. Without effective source capture, welding fume accumulates in the breathing zone, exposing workers to carcinogenic substances and fine metal particulates. Grinding dust settles on equipment, reducing product quality and machine life. In hot regions, simply opening doors and using roof fans cannot remove airborne hazards effectively while maintaining a cool indoor environment. Many small factories also lack the budget or space for centralized systems. The result is high worker turnover, regulatory risk, and steadily deteriorating air quality.

The HYYT-3KY solves these challenges by bringing powerful filtration directly to the point of work.

• Instant deployment with zero installation: The unit arrives fully assembled. Roll it to the active workstation, connect the 380V power supply, attach a 150 mm extraction arm, and start capturing fume immediately. No civil work, no permits, no downtime.
• 95% filtration efficiency for indoor recirculation: The single 380*500 mm PTFE-coated cartridge traps respirable particles, including sub-micron welding fume. Clean air is returned to the workshop, retaining cooled indoor air and reducing energy costs significantly in the hot climates of Southeast Asia and the Middle East.
• On-board automatic pulse cleaning: A timed controller fires a compressed air pulse (0.5–0.7 MPa required) through the cartridge at adjustable intervals. The reverse blast dislodges the dust cake, which falls into the integrated collection bin, maintaining constant airflow and extending filter life.
• Compact and truly portable: Its small footprint fits beside workbenches or against walls. Heavy-duty swivel casters allow one person to reposition the unit whenever the job moves.
• A versatile single-workstation tool: One HYYT-3KY serves one extraction arm effectively, making it the perfect match for manual welding, grinding, polishing, plasma cutting, and similar dry, non-explosive dust applications.

Purpose-built for intermittent to moderate-duty source capture in:

• Manual arc welding, MIG/MAG, and TIG (mild steel, stainless steel).
• Plasma and oxy-fuel cutting tables.
• Bench grinding, angle grinding, and polishing.
• Wire drawing and light extrusion dust.
• Non-ferrous dry foundry shakeout and shell removal.
• Maintenance and repair workshops, vocational training centers, and field service bays.

*Not for combustible metal dusts (e.g., aluminum, magnesium) or explosive atmospheres without appropriate modifications.*

1. Capture: A flexible extraction arm (optional) positioned near the source draws contaminated air into the unit via the powerful 2.2 kW centrifugal fan.
2. Pre-separation: Heavier particles drop out in the expansion chamber and fall into the dust bin.
3. Filtration: Fine dust and fume are trapped on the outer surface of the PTFE membrane cartridge. Clean air flows through the cartridge core.
4. Clean air return: Filtered air exits through the side grille, safe for direct workshop recirculation.
5. Pulse cleaning: A timed compressed air pulse periodically fires backward through the cartridge, dislodging dust into the bin. The bin is removed and emptied without tools.

Step 1: Confirm you need single-station source capture. One HYYT-3KY efficiently serves one 150 mm extraction arm. For multiple simultaneous workstations, consider multiple units or a larger central system.

Step 2: Match your extraction arm length (2, 3, or 4 m) and hood type to the process. We supply complete arm-and-collector packages.

Step 3: Verify the availability of a 380V 3-phase power supply and a compressed air line (0.5–0.7 MPa) nearby.

Step 4: Position the unit, connect power and air, adjust the pulse interval, and begin operation. For heavy fume, reduce the cleaning interval; for lighter dust, extend it.

*Tell us your workshop layout and dust types, and we will recommend the ideal configuration within 24 hours.*

1. Does this unit require any external ducting?

No. It is a fully self-contained recirculating unit. It filters contaminated air drawn through an arm and returns clean air directly into the room. No roof exhaust or ductwork is needed.

2. How often does the cartridge need replacing?

Typically every 12–18 months under normal intermittent use. The automatic pulse cleaning extends its life dramatically. Replacement takes about 10 minutes via a top access panel.

3. Can I use it without compressed air?

It is not recommended. Without compressed air, the pulse cleaning system cannot function, causing a rapid drop in airflow. A small shop compressor is sufficient.

4. Is it safe to recirculate cleaned air in a hot climate?

Yes. The filtered air is free of hazardous particles and can be returned indoors, preserving air-conditioned or evaporative-cooled air. This saves significant energy.

5. Can I use it for aluminum grinding?

This standard model is not designed for combustible metal dusts. Aluminum, magnesium, and similar materials require special wet or explosion-protected collectors. Please contact us for those configurations.

6. What is included in the standard supply?

The mobile collector unit with one cartridge, fan, pulse control, dust bin, and casters. The flexible extraction arm and hood are optional accessories that we can include as a complete package.

7. How can I get a quotation and shipping details?

Send us your delivery address and nearest seaport via the inquiry form or email. We provide a full quotation, lead time, and freight options within one business day. Distributor inquiries are welcome.
