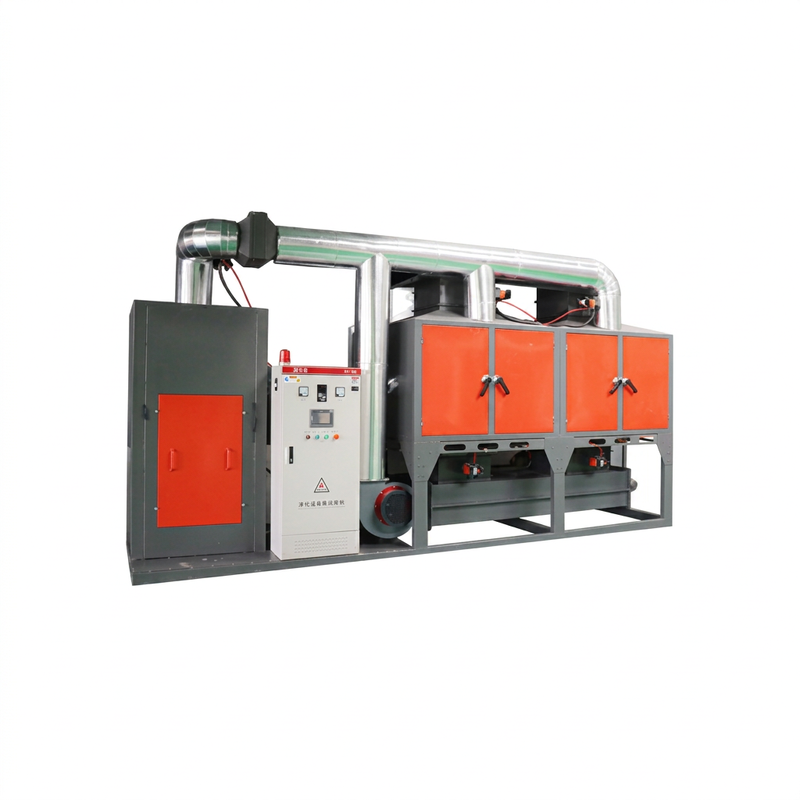

Catalytic Combustion Integrated Activated Carbon Adsorption Desorption High Efficiency

This catalytic combustion integrated system is a compact, energy-efficient VOC abatement solution specifically engineered for low-concentration, high-volume exhaust streams from paint spray booths, printing presses, and light chemical processing. The unit combines honeycomb activated carbon adsorption, hot-air desorption, and catalytic oxidation in a single automated package. During operation, VOCs are captured by the carbon bed, which is then periodically regenerated via on-site desorption. The concentrated VOCs are sent to a catalytic chamber where they are oxidized into CO₂ and water at just 200–400°C, with the exothermic heat recovered through a stainless steel heat exchanger and reused for desorption air preheating. This closed-loop design reduces energy consumption by over 70% compared to direct electric heating and eliminates the need for monthly carbon replacement. The system achieves ≥95% VOC destruction efficiency and meets stringent emission standards without the high capital cost of a full RTO. Its modular construction, PLC control, and optional explosion-proof configuration make it the practical, low-maintenance choice for small to mid-size facilities seeking reliable compliance.

Facilities using only activated carbon filters face recurring media replacement costs and the risk of breakthrough when carbon saturates. UV or plasma systems often fail to fully oxidize complex solvent mixtures, leaving residual compounds in the exhaust. Large thermal oxidizers require substantial capital and operate at high temperatures, making them uneconomical for moderate airflows. These gaps force operators into a cycle of either excessive consumable spending or uncertain emission performance.

This integrated system solves the cost-efficiency conflict. The carbon bed adsorbs VOCs from the full airflow, concentrating them into a much smaller desorption stream. The catalytic reactor then needs only a fraction of the energy to destroy this concentrated stream, recovering its own heat to sustain the desorption process. The carbon is regenerated in place and reused for years. This self-sustaining thermal cycle and built-in concentration step make it far cheaper to operate than both consumable-dependent filters and large standalone oxidizers.

• Furniture and automotive spray booths.
• Industrial coating and painting lines.
• Gravure and flexographic printing workshops.
• Plastic injection molding and rubber curing exhaust.
• Small chemical batch reactors and pharmaceutical solvent vents.
• Any low-to-medium concentration organic exhaust requiring dependable, low-maintenance compliance.

The fan draws solvent-laden air into the activated carbon adsorber, where VOCs are retained while clean air exits. When the carbon approaches saturation, the system switches to desorption mode: a hot air stream strips the VOCs out of the carbon, and the concentrated flow is routed to the catalytic combustor. Inside the catalyst bed, the VOCs ignite flamelessly at a low temperature. The hot, clean exhaust passes through a heat exchanger, transferring energy back into the desorption air loop. The regenerated carbon is then ready for the next adsorption cycle, and the entire process repeats automatically.

1. Determine the total exhaust airflow and average VOC concentration. Select a unit sized for a minimum of 20% margin over peak flow.
2. For paint overspray, ensure a pre-filter is installed upstream to protect the carbon and catalyst.
3. Choose a 2-vessel or 3-vessel configuration based on whether continuous adsorption is required during desorption.
4. For flammable solvent mixtures, specify the explosion-proof package with certified controls and relief panels.

Consult our engineers with your MSDS and airflow data for a free performance projection and quotation.

• 1. How does this compare to a standard activated carbon filter box?
  The key difference is regeneration. A standard box requires monthly carbon replacement, while this system regenerates the carbon on-site and reuses it for 2–3 years. The catalytic stage also ensures complete destruction of VOCs rather than just transferring them to a solid waste stream.
• 2. What is the role of the catalyst and how long does it last?
  The precious-metal catalyst enables flameless combustion at 200–350°C, far lower than the 750°C+ needed for thermal oxidation. Under normal operation with proper pre-filtration to prevent fouling, the catalyst lasts 3–5 years before requiring replacement.
• 3. Can this unit run continuously without downtime?
  Yes. With a multi-vessel configuration (two or three adsorbers), one vessel can be in adsorption mode while another undergoes desorption. This staggered operation ensures uninterrupted treatment of the process exhaust.
• 4. What safety features prevent carbon bed fires?
  Desorption temperature is strictly limited to 120°C. A programmable controller monitors bed temperature continuously, and automatic shut-off valves isolate the hot section if any overheating is detected. The system also includes flame arrestors and pressure-relief panels.
• 5. Is a pre-filter really necessary for spray booth exhaust?
  Absolutely. Paint overspray and particulates will blind the carbon pores and poison the catalyst. A dry filter or water wash must be installed upstream to remove solids and sticky aerosols before they enter the adsorber.
• 6. How does the heat exchanger reduce operating cost?
  The catalytic reaction generates heat. The exchanger captures over 90% of this heat and uses it to preheat the desorption air. Once the unit reaches operating temperature, the electric heater only needs to provide a small top-up, cutting electrical consumption by more than half compared to direct-heated desorption systems.
• 7. How do I get a quotation?
  Provide the total exhaust airflow, process type, operating hours, and your nearest seaport. We will return a complete technical proposal with lead time and shipping cost within one business day. Distributor and project pricing are available.
